日本SAKAGAMI阪上气封PDU是气缸防尘密封圈，因此可以使安装空间紧凑。

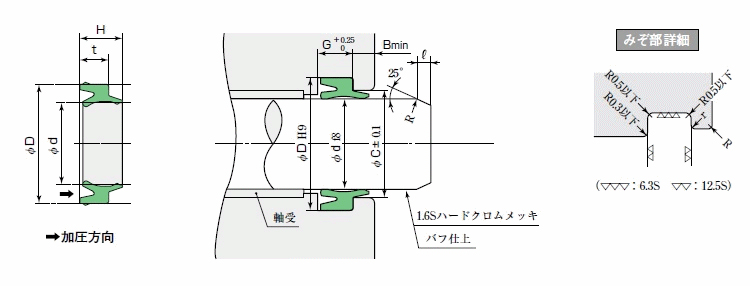

| 标准 | 密封件的公称尺寸及安装尺寸 (単位：mm） | 耐热性 | ||||||
| d*D*t*H | H | G | C | B | R | e | ||
| （RN 818） | RF905 | （RF 905） | ||||||
| PDU-6Z | 6*10*3/4.4 | 3.5 | 7.6 | 2 | 0.5 | 1.5 | PDU-6F | |
| PDU-8Z | 8*12*3.5/4.9 | 4.7 | 4 | 9.6 | 2 | 0.5 | 1.5 | PDU-8F |
| PDU-10Z | 10*14*3.5/4.9 | 4.7 | 4 | 11.6 | 2 | 0.5 | 1.5 | PDU-10F |
| PDU-12Z | 12*16*3.5/4.9 | 4.7 | 4 | 13.6 | 2 | 0.5 | 1.5 | PDU-12F |
| PDU-14Z | 14*18*3.5/4.9 | 4.7 | 4 | 15.6 | 2 | 0.5 | 1.5 | PDU-14F |
| PDU-16Z | 16*24*5.5/7.5 | 7.3 | 6 | 19.4 | 2 | 0.6 | 2 | PDU-16F |
| PDU-20Z | 20*28*5.5/7.5 | 7.3 | 6 | 23.4 | 2 | 0.6 | 2 | PDU-20F |
| PDU-25Z | 25*33*5.5/7.5 | 7.3 | 6 | 28.4 | 2 | 0.6 | 2 | PDU-25F |
| PDU-30Z | 30*40*6.5/8.5 | 7 | 34 | 2 | 0.8 | 2.5 | PDU-30F | |
| PDU-32Z | 32*42*6.5/8.5 | 7 | 36 | 2 | 0.8 | 2.5 | PDU-32F | |
| PDU-35Z | 35*45*6.5/8.5 | 7 | 39 | 2 | 0.8 | 2.5 | PDU-35F | |
| PDU-36Z | 36*46*6.5/8.5 | 7 | 40 | 2 | 0.8 | 2.5 | PDU-36F | |
| PDU-40Z | 40*50*6.5/8.5 | 7 | 44 | 2 | 0.8 | 2.5 | ||
| PDU-45Z | 45*55*6.5/8.5 | 7 | 49 | 2 | 0.8 | 2.5 | ||
