日本阪上SAKAGAMI油封SKY是很受欢迎的液压缸密封圈。它既可以用于活塞和活塞杆杆，也可以安装在单个槽中，从而减少了零件数量并降低了成本，例如紧凑的设计。

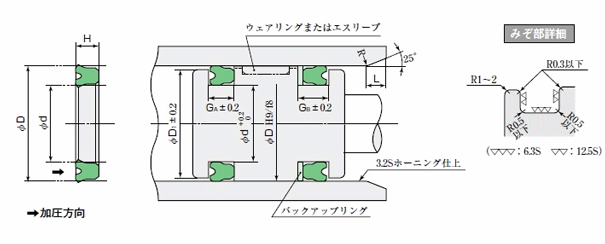

| 标准型号 | 密封件的公称尺寸及安装尺寸 (単位：mm） | 耐热性型号 | 耐寒性型号 | ||||||
| （RN 906） | d*D*H | GA. | GB | D1 | d1（参考） | L | e | （RF 905）（RF 907） | （RN 903） |
| SKY-0008005N906 | 8*14*3.7 | 4.2 | 5.2 | 13 | 8.4 | 3 | 1.5 | ||
| SKY-0010001N906 | 10*18*5 | 5.7 | 6.7 | 17 | 10.4 | 3 | 1.5 | ||
| SKY-0012001N906 | 12*20*5 | 5.7 | 6.7 | 19 | 12.4 | 3 | 1.5 | ||
| SKY-12.5 | 12.5*20*5 | 5.7 | 6.7 | 19 | 12.9 | 3 | 1.5 | ||
| SKY-14 | 14*22*5 | 5.7 | 6.7 | 21 | 14.4 | 3 | 1.5 | SKY-14F | |
| SKY-16 | 16*24*5 | 5.7 | 6.7 | 23 | 16.4 | 3 | 1.5 | SKY-16F | |
| SKY-0017001N906 | 17*25*5 | 5.7 | 6.7 | 24 | 17.4 | 3 | 1.5 | ||
| SKY-18 | 18*26*5 | 5.7 | 6.7 | 25 | 18.4 | 3 | 1.5 | SKY-18F | |
| SKY-20 | 20*28*5 | 5.7 | 6.7 | 27 | 20.4 | 3 | 1.5 | SKY-20F | SKY-20N |
| SKY-0020001N906 | 20*30*6 | 7 | 8.5 | 29 | 20.4 | 3 | 1.5 | ||
| SKY-22 | 22*30*5 | 5.7 | 6.7 | 29 | 22.4 | 3 | 1.5 | SKY-22F | |
| SKY-22.4 | 22.4*30*5 | 5.7 | 6.7 | 29 | 22.8 | 3 | 1.5 | SKY-22.4F | |
| SKY-23.5 | 23.5*31.5*5 | 5.7 | 6.7 | 30.5 | 23.9 | 3 | 1.5 | SKY-23.5F | |
| SKY-0024002N906 | 24*32*5 | 5.7 | 6.7 | 31 | 24.4 | 3 | 1.5 | ||
| SKY-25 | 25*33*5 | 5.7 | 6.7 | 32 | 25.4 | 3 | 1.5 | SKY-25F | SKY-25N |
| SKY-0026001N906 | 26*34*5 | 5.7 | 6.7 | 33 | 26.4 | 3 | 1.5 | ||
| SKY-0027001N906 | 27*35*5 | 5.7 | 6.7 | 34 | 27.4 | 3 | 1.5 | ||
| SKY-28 | 28*35.5*5 | 5.7 | 6.7 | 34.5 | 28.4 | 3 | 1.5 | SKY-28F | SKY-28N |
| SKY-28A | 28*36*5 | 5.7 | 6.7 | 35 | 28.4 | 3 | 1.5 | ||
| SKY-0030001N906 | 30*38*5 | 5.7 | 6.7 | 37 | 30.5 | 3.5 | 3 | ||
| SKY-30 | 30*40*6 | 7 | 8.5 | 39 | 30.5 | 3.5 | 3 | SKY-30F | SKY-30N |
| SKY-31.5 | 31.5*41.5*6 | 7 | 8.5 | 40.5 | 32 | 3.5 | 3 | SKY-31.5F | |
| SKY-32 | 32*42*6 | 7 | 8.5 | 41 | 32.5 | 3.5 | 3 | ||
| SKY-35 | 35*45*6 | 7 | 8.5 | 44 | 35.5 | 3.5 | 3 | SKY-35F | SKY-35N |
| SKY-35.5 | 35.5*45*6 | 7 | 8.5 | 44 | 36 | 3.5 | 3 | SKY-35.5F | SKY-35.5N |
| SKY-35.5A | 35.5*45.5*6 | 7 | 8.5 | 44.5 | 36 | 3.5 | 3 | ||
| SKY-36 | 36*46*6 | 7 | 8.5 | 45 | 36.5 | 3.5 | 3 | SKY-36F | |
| SKY-0038001N906 | 38*48*6 | 7 | 8.5 | 47 | 38.5 | 3.5 | 3 | ||
| SKY-40 | 40*50*6 | 7 | 8.5 | 49 | 40.5 | 3.5 | 3 | SKY-40F | SKY-40N |
| SKY-45 | 45*55*6 | 7 | 8.5 | 54 | 45.5 | 3.5 | 3 | SKY-45F | SKY-45N |
| SKY-45A | 45*56*7 | 8 | 9.5 | 55 | 45.5 | 3.5 | 3 | SKY-45AF | SKY-45AN |
| SKY-50 | 50*60*6 | 7 | 8.5 | 59 | 50.5 | 3.5 | 3 | SKY-50F | SKY-50N |
| SKY-53 | 53*63*6 | 7 | 8.5 | 62 | 53.6 | 3.5 | 3 | SKY-53F | |
| SKY-55 | 55*65*6 | 7 | 8.5 | 64 | 55.6 | 3.5 | 3 | SKY-55F | SKY-55N |
| SKY-56 | 56*66*6 | 7 | 8.5 | 65 | 56.6 | 3.5 | 3 | SKY-56F | |
| SKY-0058001N906 | 58*68*6 | 7 | 8.5 | 67 | 58.6 | 3.5 | 3 | ||
| SKY-60 | 60*70*6 | 7 | 8.5 | 69 | 60.6 | 3.5 | 3 | SKY-60F | SKY-60N |
| SKY-60A | 60*71*7 | 8 | 9.5 | 70 | 60.6 | 3.5 | 3 | SKY-60AF | |
| SKY-0061001N906 | 61*71*6 | 7 | 8.5 | 70 | 61.6 | 3.5 | 3 | ||
| SKY-63 | 63*73*6 | 7 | 8.5 | 72 | 63.6 | 3.5 | 3 | SKY-63F | SKY-63N |
| SKY-65 | 65*75*6 | 7 | 8.5 | 74 | 65.6 | 3.5 | 3 | SKY-65F | SKY-65N |
| SKY-67 | 67*77*6 | 7 | 8.5 | 76 | 67.6 | 3.5 | 3 | SKY-67F | |
| SKY-70 | 70*80*6 | 7 | 8.5 | 79 | 70.6 | 3.5 | 3 | SKY-70F | SKY-70N |
| SKY-71 | 71*80*6 | 7 | 8.5 | 79 | 71.6 | 3.5 | 3 | SKY-71F | |
| SKY-75 | 75*85*6 | 7 | 8.5 | 84 | 75.6 | 3.5 | 3 | SKY-75F | SKY-75N |
| SKY-80 | 80*90*6 | 7 | 8.5 | 89 | 80.6 | 3.5 | 3 | SKY-80F | SKY-80N |
| SKY-0085002N906 | 85*95*6 | 7 | 8.5 | 94 | 85.6 | 3.5 | 3 | ||
| SKY-85 | 85*100*9 | 10 | 12 | 98 | 85.6 | 4 | 4 | SKY-85F | SKY-85N |
| SKY-86 | 86*100*8.5 | 9.5 | 11.5 | 98 | 86.6 | 4 | 4 | SKY-86F | |
| SKY-0090001N906 | 90*100*6 | 7 | 8.5 | 99 | 90.6 | 4 | 4 | ||
| SKY-90 | 90*105*9 | 10 | 12 | 103 | 90.6 | 4 | 4 | SKY-90F | SKY-90N |
| SKY-95 | 95*110*9 | 10 | 12 | 108 | 95.6 | 4 | 4 | SKY-95F | |
| SKY-0096001N906 | 96*111*9 | 10 | 12 | 109 | 96.6 | 4 | 4 | ||
| SKY-98 | 98*112*8.5 | 9.5 | 11.5 | 110 | 98.6 | 4 | 4 | SKY-98F | |
| SKY-100 | 100*115*9 | 10 | 12 | 113 | 100.6 | 4 | 4 | SKY-100F | SKY-100N |
| SKY-0105002N906 | 105*120*9 | 10 | 12 | 118 | 105.6 | 4 | 4 | ||
| SKY-106 | 106*120*8.5 | 9.5 | 11.5 | 118 | 106.6 | 4 | 4 | SKY-106F | SKY-106N |
| SKY-0110003N906 | 110*125*9 | 10 | 12 | 123 | 110.6 | 4 | 4 | ||
| SKY-112 | 112*125*8.5 | 9.5 | 11.5 | 123 | 112.6 | 4 | 4 | SKY-112F | |
| SKY-112A | 112*125*9 | 10 | 12 | 123 | 112.6 | 4 | 4 | SKY-112AF | |
| SKY-0115002N906 | 115*130*8.5 | 9.5 | 11.5 | 128 | 115.6 | 4 | 4 | SKY- | |
| SKY-118 | 118*132*8.5 | 9.5 | 11.5 | 130 | 118.6 | 4 | 4 | SKY-118F | SKY-118N |
| SKY-0119001N906 | 119*133*8.5 | 9.5 | 11.5 | 131 | 119.6 | 4 | 4 | ||
| SKY-0120002N906 | 120*135*9 | 10 | 12 | 133 | 120.6 | 4 | 4 | ||
| SKY-125 | 125*140*9 | 10 | 12 | 138 | 125.6 | 4 | 4 | SKY-125F | SKY-125N |
| SKY-0130001N906 | 130*145*9 | 10 | 12 | 143 | 130.6 | 4 | 4 | ||
| SKY-132 | 132*145*8.5 | 9.5 | 11.5 | 143 | 132.6 | 4 | 4 | SKY-132F | |
| SKY-136 | 136*150*8.5 | 9.5 | 11.5 | 148 | 136.6 | 4 | 4 | SKY-136F | |
| SKY-140 | 140*155*9 | 10 | 12 | 153 | 140.6 | 4 | 4 | SKY-140F | |
| SKY-145 | 145*160*9 | 10 | 12 | 158 | 145.6 | 4 | 4 | SKY-145F | SKY-145N |
| SKY-150 | 150*165*9 | 10 | 12 | 163 | 150.6 | 4 | 4 | SKY-150F | |
| SKY-155 | 155*170*9 | 10 | 12 | 168 | 155.6 | 4 | 4 | SKY-155F | |
| SKY-160 | 160*175*9 | 10 | 12 | 173 | 160.6 | 4 | 4 | SKY-160F | |
| SKY-165 | 165*180*9 | 10 | 12 | 178 | 165.6 | 4 | 4 | SKY-165F | |
| SKY-0130001N906 | 170*185*9 | 10 | 12 | 183 | 170.6 | 4 | 4 | ||
| SKY-175 | 175*190*9 | 10 | 12 | 188 | 175.6 | 4 | 4 | SKY-175F | |
| SKY-180 | 180*200*12 | 13 | 15.5 | 198 | 180.8 | 5 | 5 | SKY-180F | |
| SKY-0185001N906 | 185*205*12 | 13 | 15.5 | 203 | 185.8 | 5 | 5 | ||
| SKY-0190003N906 | 190*210*12 | 13 | 15.5 | 208 | 190.8 | 5 | 5 | SKY- | |
| SKY-0195001N906 | 195*215*12 | 13 | 15.5 | 213 | 195.8 | 5 | 5 | ||
| SKY-200 | 200*220*12 | 13 | 15.5 | 218 | 200.8 | 5 | 5 | SKY-200F | |
| SKY-204 | 204*224*12 | 13 | 15.5 | 222 | 204.8 | 5 | 5 | SKY-204F | |
| SKY-0210002N906 | 210*230*12 | 13 | 15.5 | 228 | 210.8 | 5 | 5 | SKY- | |
| SKY-0215001N906 | 215*235*12 | 13 | 15.5 | 233 | 215.8 | 5 | 5 | ||
| SKY-0220001N906 | 220*240*12 | 13 | 15.5 | 238 | 220.8 | 5 | 5 | ||
| SKY-224 | 224*244*12 | 13 | 15.5 | 242 | 224.8 | 5 | 5 | SKY-224F | |
| SKY-230 | 230*250*12 | 13 | 15.5 | 248 | 230.8 | 5 | 5 | SKY-230F | |
| SKY-0235001N906 | 235*255*12 | 13 | 15.5 | 253 | 235.8 | 5 | 5 | ||
| SKY-0237001N906 | 237*257*12 | 13 | 15.5 | 255 | 237.8 | 5 | 5 | ||
| SKY-0240003N906 | 240*260*12 | 13 | 15.5 | 258 | 240.8 | 5 | 5 | SKY- | |
| SKY-0245001N906 | 245*265*12 | 13 | 15.5 | 263 | 245.8 | 5 | 5 | ||
| SKY-250 | 250*270*12 | 13 | 15.5 | 268 | 250.8 | 5 | 5 | SKY-250F | |
| SKY-260 | 260*280*14 | 15 | 18 | 278 | 260.8 | 5 | 5 | SKY-260F | |
| SKY-280 | 280*300*14 | 15 | 18 | 298 | 280.8 | 5 | 5 | SKY-280F | |
| SKY-0290001N906 | 290*310*14 | 15 | 18 | 308 | 290.8 | 5 | 5 | ||
| SKY-295 | 295*315*14 | 15 | 18 | 313 | 295.8 | 5 | 5 | SKY-295F | |
| SKY-0300003N906 | 300*320*12 | 13 | 16 | 318 | 300.8 | 5 | 5 | ||
| SKY-0310001N906 | 310*330*14 | 15 | 18 | 328 | 311 | 5 | 5 | ||
| SKY-315 | 315*335*14 | 15 | 18 | 333 | 316 | 5 | 5 | ||
| SKY-335 | 335*355*14 | 15 | 18 | 353 | 336 | 5 | 5 | ||
| SKY-355 | 355*375*14 | 15 | 18 | 373 | 356 | 5 | 5 | ||
| SKY-380 | 380*400*14 | 15 | 18 | 398 | 381 | 5 | 5 | SKY-380F | |
| SKY-400 | 400*420*14 | 15 | 18 | 418 | 401 | 5 | 5 | ||
| SKY-430 | 430*450*14 | 15 | 18 | 448 | 431 | 5 | 5 | ||
| SKY-450 | 450*470*14 | 15 | 18 | 468 | 451 | 5 | 5 | ||
| SKY-480 | 480*500*14 | 15 | 18 | 498 | 481 | 5 | 5 | ||
| SKY-0500001N906 | 500*525*17 | 18 | 21 | 522 | 501 | 5 | 5 | ||
| SKY-0540001N906 | 540*560*14 | 15 | 18 | 558 | 541 | 5 | 5 | ||
| SKY-0550001N906 | 550*570*13 | 14 | 17 | 568 | 551 | 5 | 5 | ||
| SKY-0610001N906 | 610*630*14 | 15 | 18 | 628 | 611 | 5 | 5 | ||
| SKY-0630001N906 | 630*655*17 | 18 | 21 | 652 | 631 | 5 | 5 | ||
| SKY-0660001N906 | 660*690*18 | 19 | 22 | 687 | 661 | 5 | 5 | ||
| SKY-0770001N906 | 770*800*18 | 19 | 22 | 797 | 771 | 5 | 5 | ||
